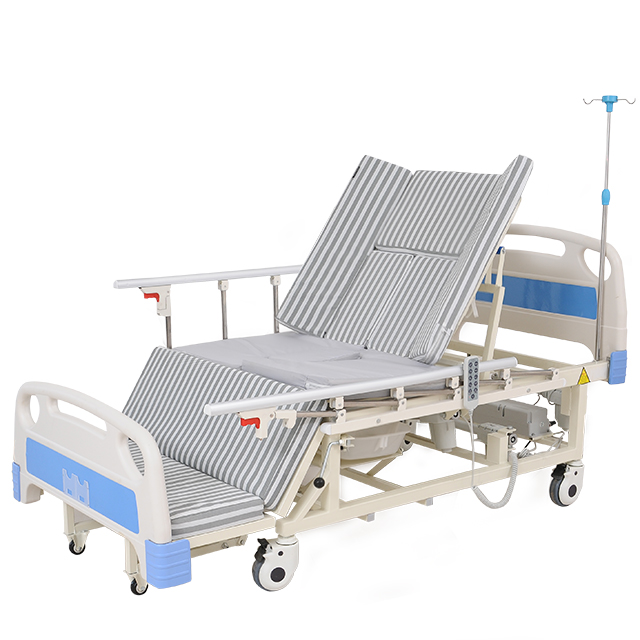

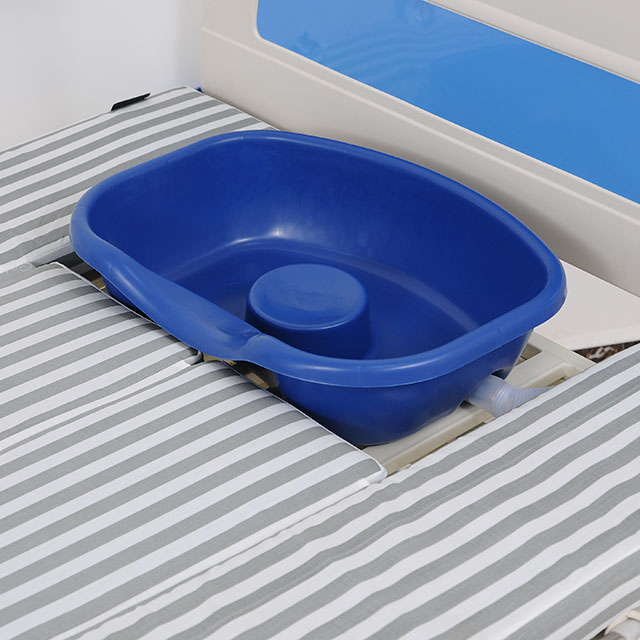

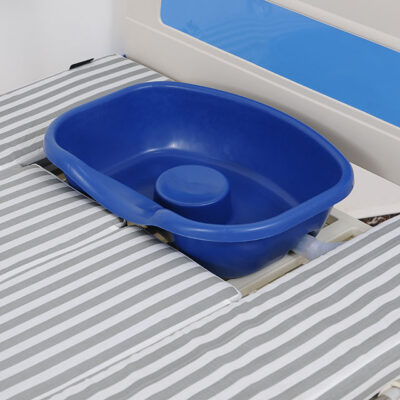

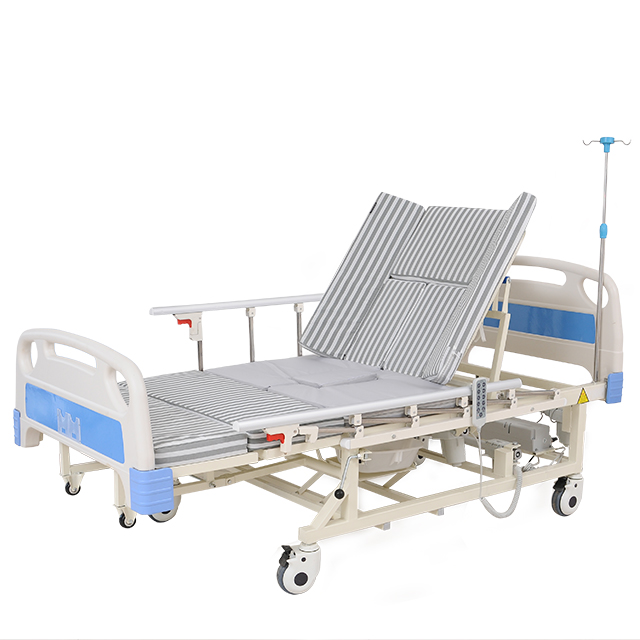

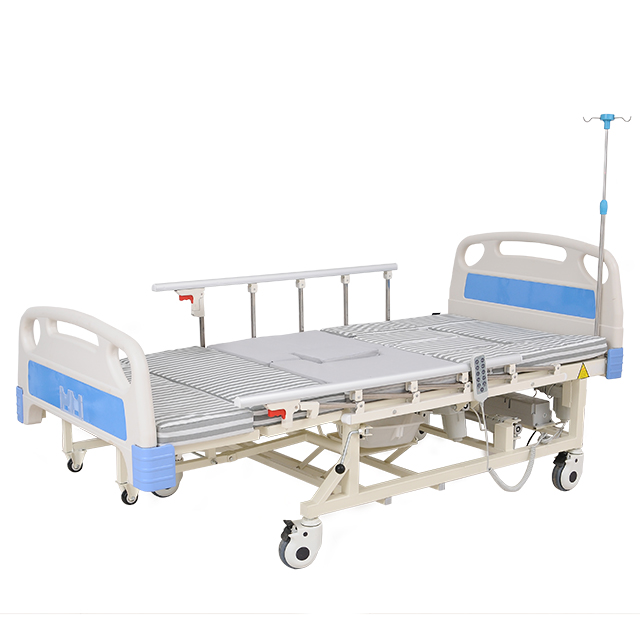

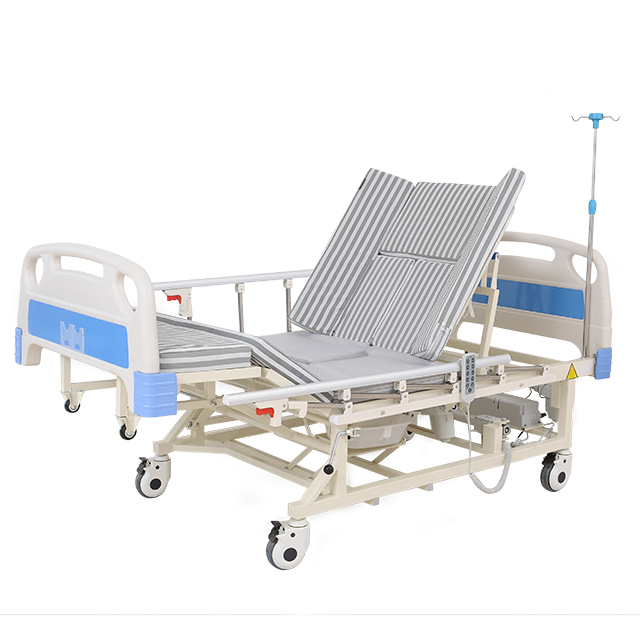

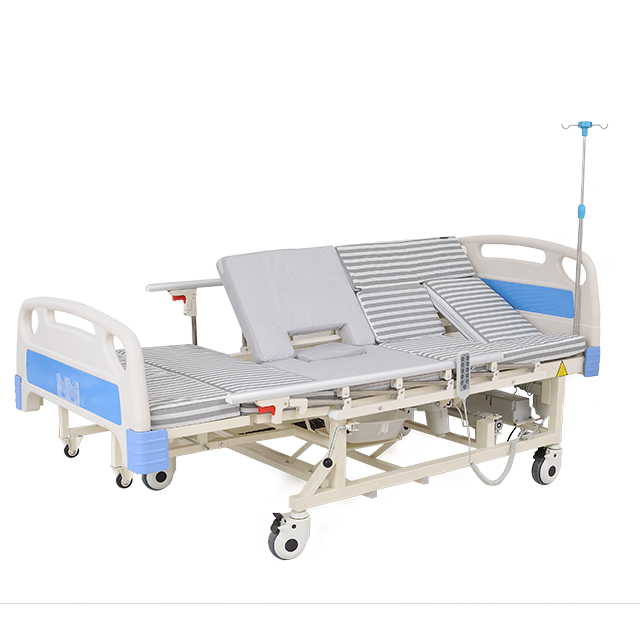

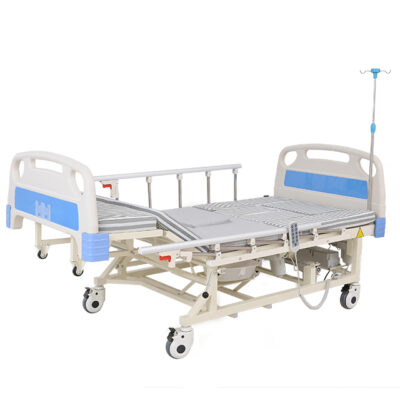

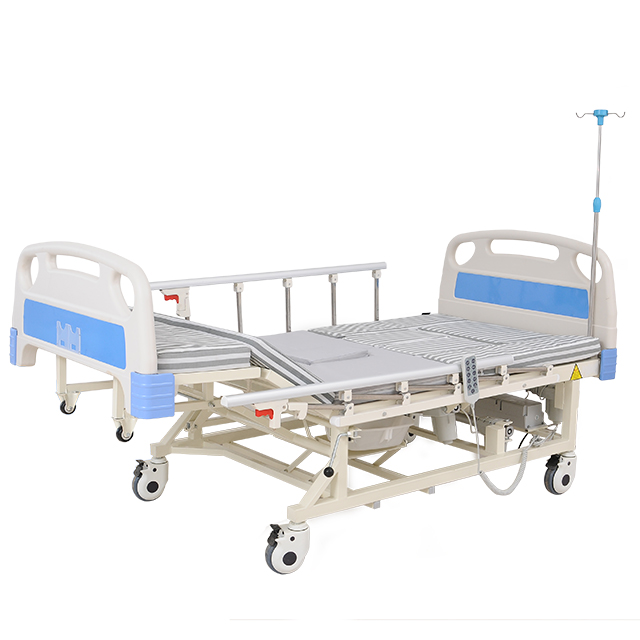

One bed covers five daily-care positions—sit up, raise legs, drop legs, side-turn, and hi-low—so transfers, feeding, reading, drainage, and bedside care are simpler and safer. Modular design supports fast in-home assembly and later maintenance.
Standard: electric system, frame/bed board, side rails, casters.
Options: IV pole, overbed table, mattress (6/8/10/15 cm), frame thickness upgrades, branding/color, accessory kits per market.
Home long-term care, rehab centers, small clinics, and nursing homes that need safe positioning with less caregiver load. Metal frame + ABS parts for durability and easy cleaning.
Five electric adjustments (back/leg up, leg down, turning, hi-low), ≤150 kg load, steel frame + ABS, easy assembly. Bulk orders & OEM/ODM available; IV pole and overbed table optional.
ABS head/foot boards tolerate routine disinfection. Steel structure is robust for high-frequency use. Electrical and critical components can be documented to destination-market requirements (confirm before PO).
Bulk orders and OEM/ODM supported. We provide packing lists, container loading plans, and recommended spares per project. Basic installation and maintenance guides included.
| Item | Specification |
|---|---|
| Model | CZEN-01 |
| Product Name | Electric 5 Function Home Nursing Bed |
| Keywords | Home Nursing Bed, Home Care Bed, 5 Function Home Nursing |
| Material | Cold‑rolled steel, ABS |
| Dimensions | L2170 × W960 × H420–620 mm |
| Load Capacity | ≤ 150 kg |
| Adjustment Angles | Backrest: 0–70±5°; Leg lift: 0–35±5°; Leg down: 0– –45°; Turning: 0–45° |
| Bed Board Thickness | 1.0 / 1.2 mm |
| Frame Size | 30 × 60 mm, thickness 1.0 / 1.2 / 1.5 mm |

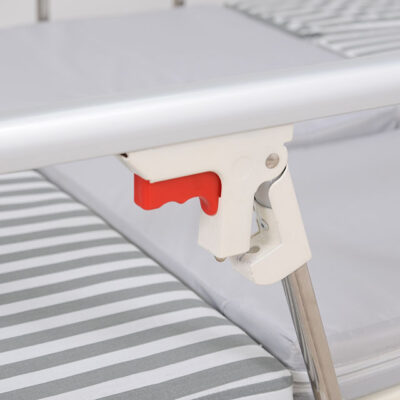

| Side Rails
| Aluminum top + stainless steel posts, up to 4 pieces |

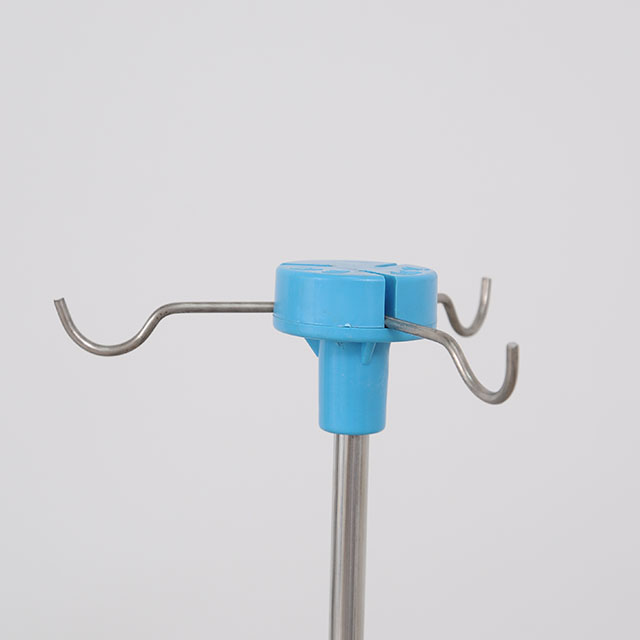

| IV Pole
| Stainless steel with 4/5 hooks |

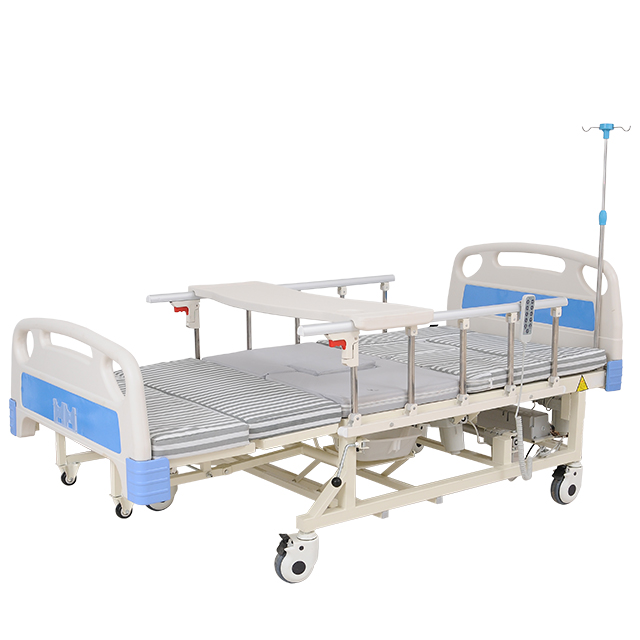

| Overbed Table
| Wood or ABS |
| Casters | 5″ (125 mm), brake option available |
MOQ? Depends on configuration and accessory set—share target qty and options for a quote.
Lead time? Standard builds ship faster; custom color/logo/accessories add time (confirm before scheduling).
Packing & loading? Carton + pallet/wood frame. Detailed container plan and size sheet provided with order.
Motor & warranty? Electric system included; warranty and spare-parts list confirmed in the contract.
Project bundling? Yes—pair with Overbed Table and Ward Screen for one-shot procurement.
