Three Adjustable Functions
Backrest Adjustment: The backrest can be raised up to 85 degrees, allowing patients to easily sit up for meals, reading, or other activities.
Leg Rest Adjustment: The leg section elevates up to 45 degrees, which helps improve circulation, reduce swelling, and increase patient comfort.
Height Adjustment: The overall bed height can be modified between 400mm and 700mm (approx. 16-28 inches), making it easier for patients to get in and out of bed safely and for caregivers to work at a comfortable height.

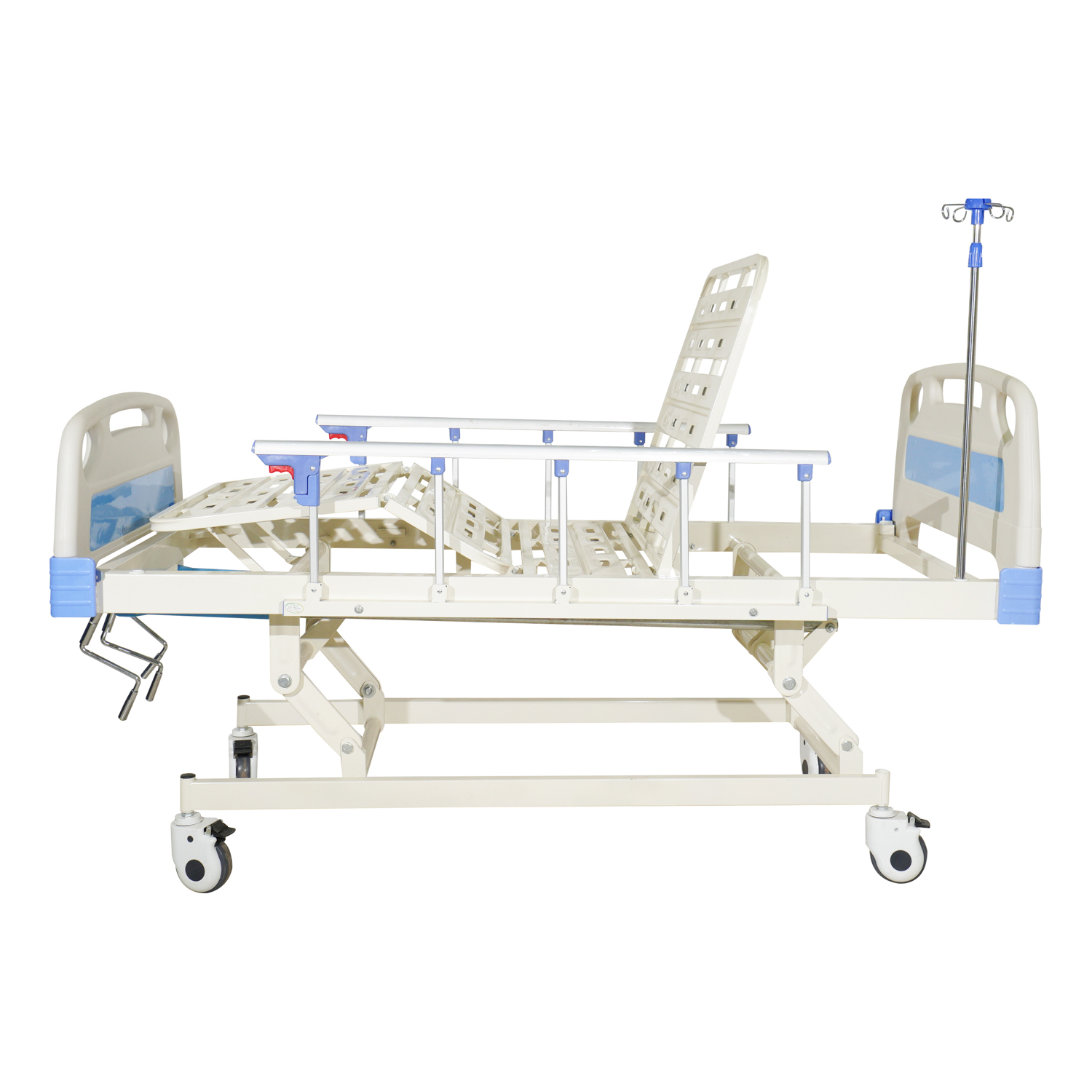

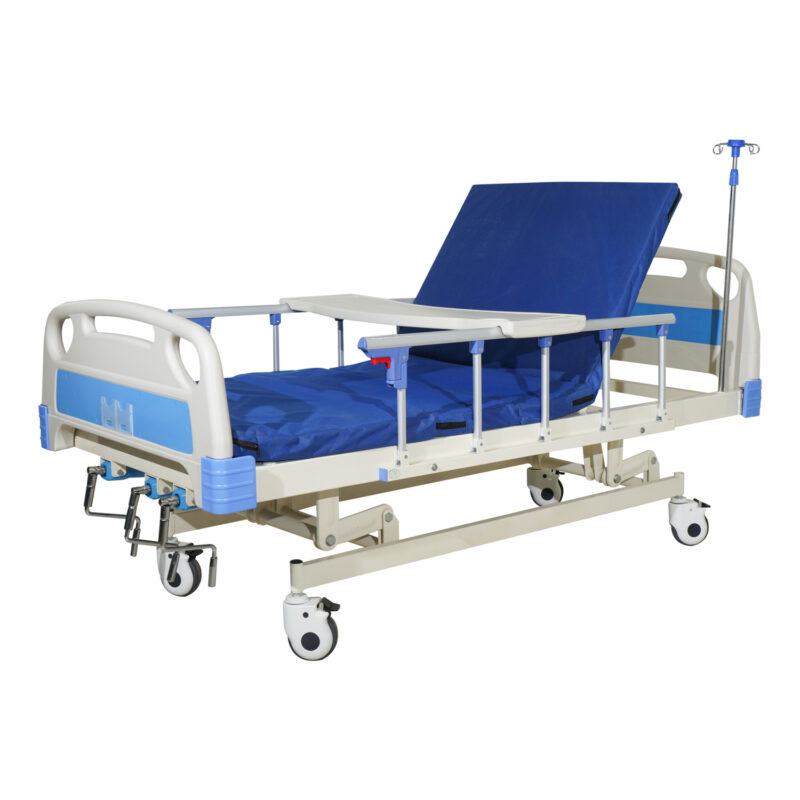

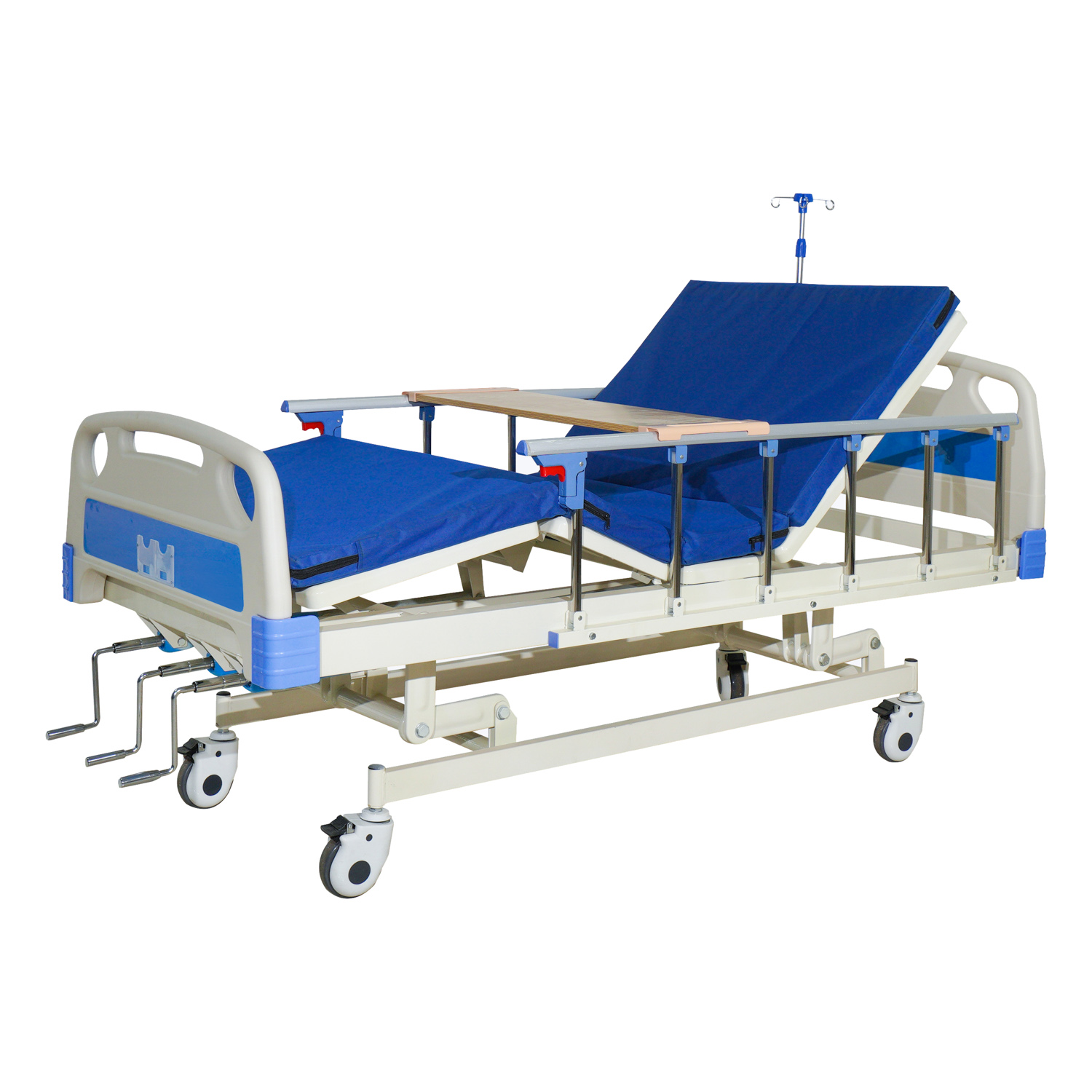

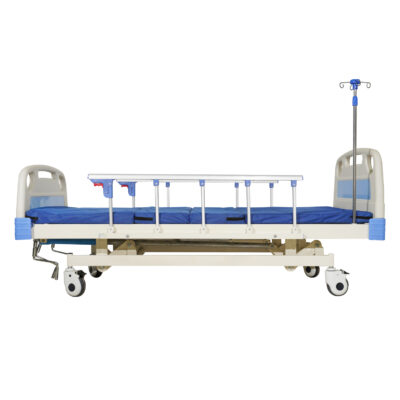

Technical Specifications of the CZ3-A Model
The CZ3-A is built with high-quality materials to ensure longevity and patient safety. Its design as an ABS double headboard hospital bed makes it both sturdy and easy to sanitize, a critical feature in any medical environment. We’ve outlined the key product data below to provide a clear overview of its capabilities.
| Feature | Specification |
| Model Code | CZ3-A |
| Material | Metal Frame, ABS Head/Foot Board |
| Overall Dimension | L2170 x W960 x H420-620mm |
| Load Capacity | Within 150kgs |
| Back Rest Angle | 0-70° (±5°) |
| Leg Lifting Angle | 0-35° (±5°) |
| Height Adjustment | 200mm |

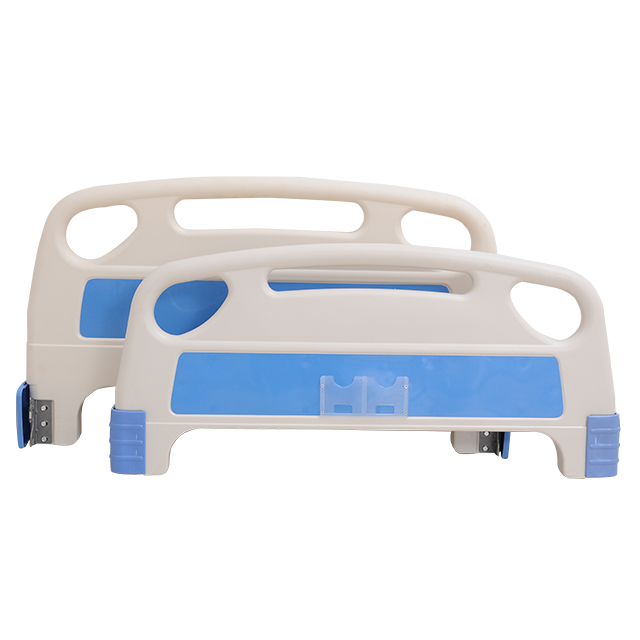

| Head & Foot Board | Durable ABS, constructed using blowing craftwork |

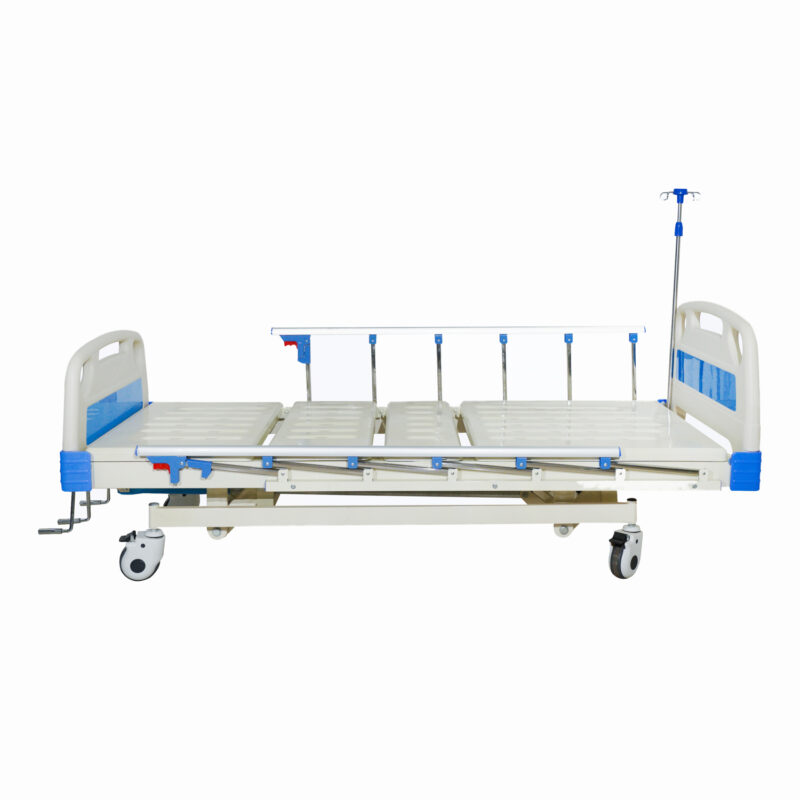

| Bed Board | Cold steel board (1.0/1.2mm thick), with or without punching holes |
| Bed Frame | 40x80mm tube, thickness options: 1.0/1.2/1.5mm |
| Bed Leg | 40x40mm tube, thickness options: 1.0/1.2/1.5mm |

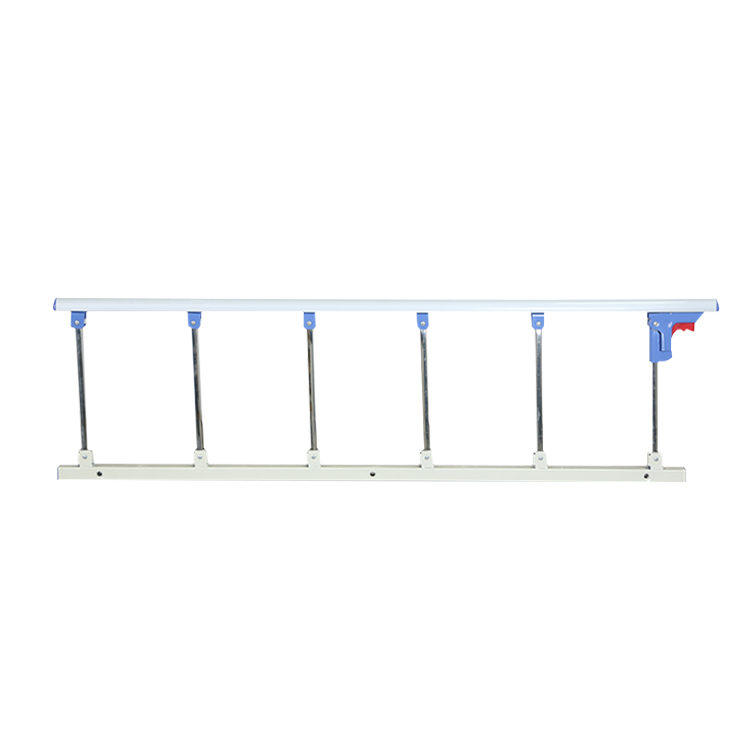

| Side Rails (Optional) | Cold steel tube or aluminum/stainless steel options. Post can bed 4/5/6pcs. |

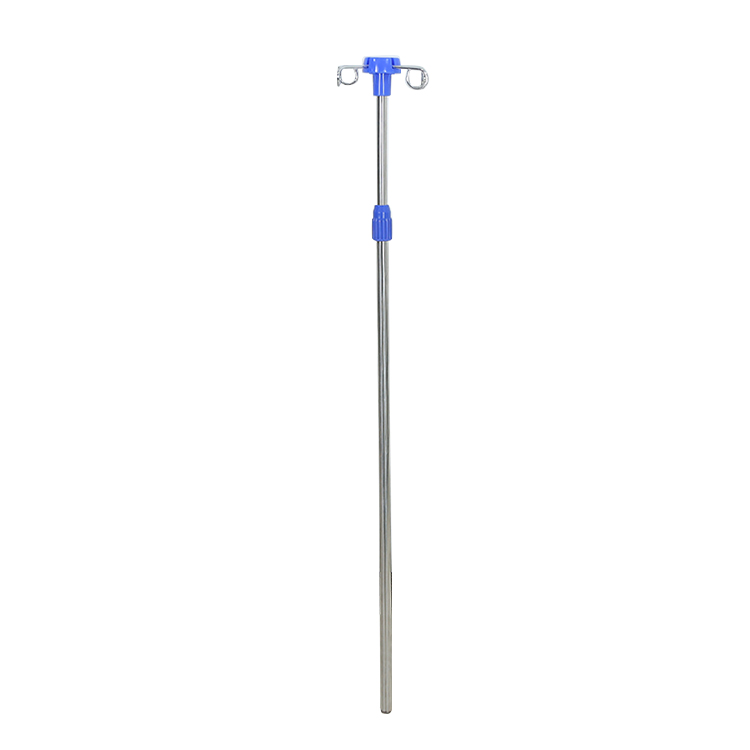

| IV Rod (Optional) | Stainless steel rod with 4 hooks |

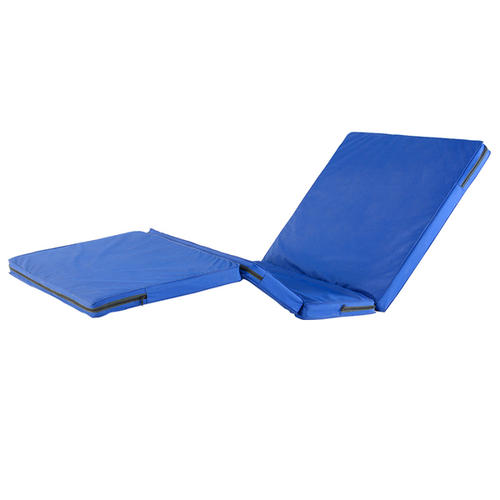

| Mattress (Optional) | 6/8/10/15cm thickness options; inner palm with sponge |

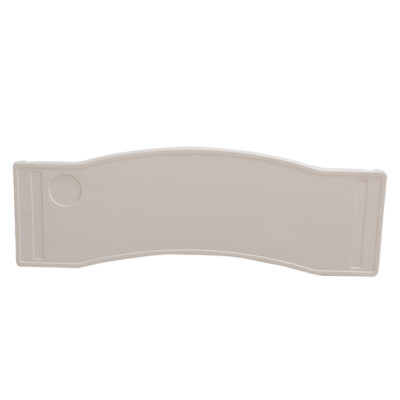

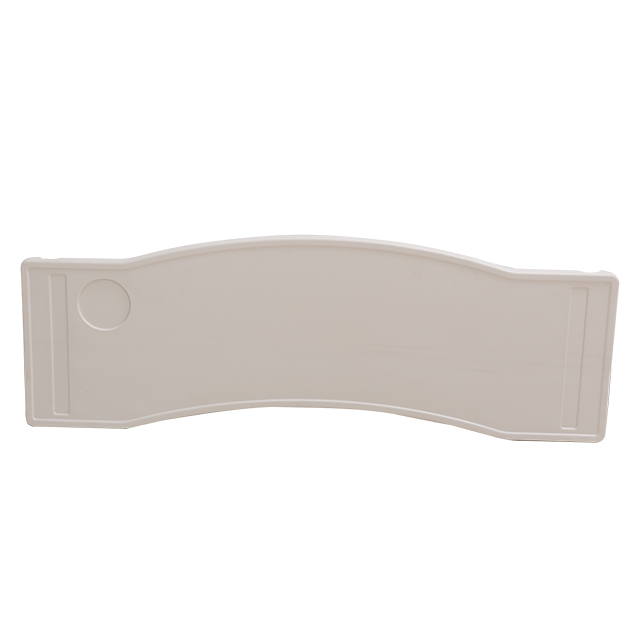

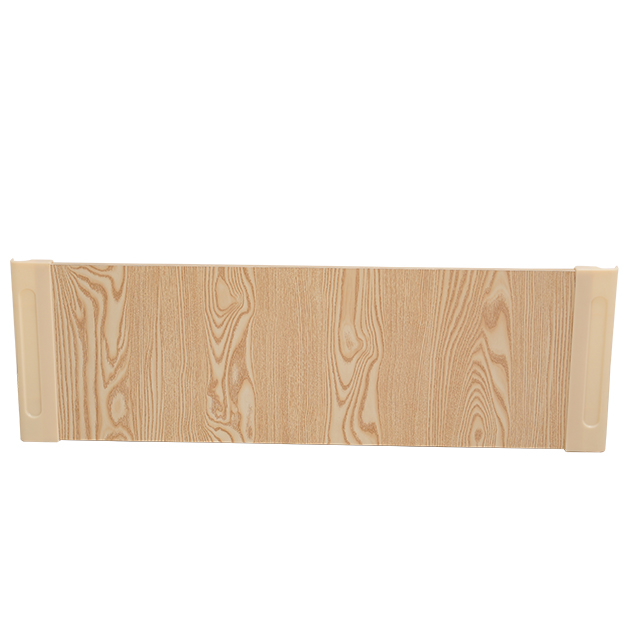

| Overbed Table (Optional) | Wooden or ABS table |

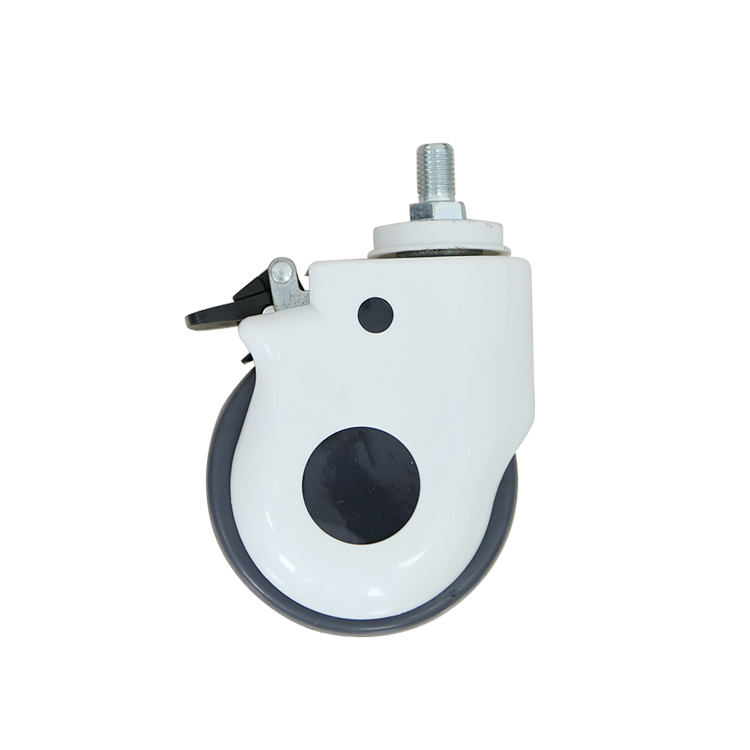

| Castors (Optional) | 5” (125mm) individual braking castors |
Customization for Your Needs (OEM/ODM)
We recognize that diferent healthcare facilities have unique requirements. Whether you are outfitting a new hospital wing or upgrading an entire nursing home, our Hospital Beds OEM services provide the flexibility you need. The CZ3-A platform can be customized with various accessories, including different side rail configurations, mattress types, and castors to create the perfect 3 Crank Hospital Bed for your specific application. Our efficient supply chain ensures we can respond quickly to bulk orders and deliver on tight project timelines.
