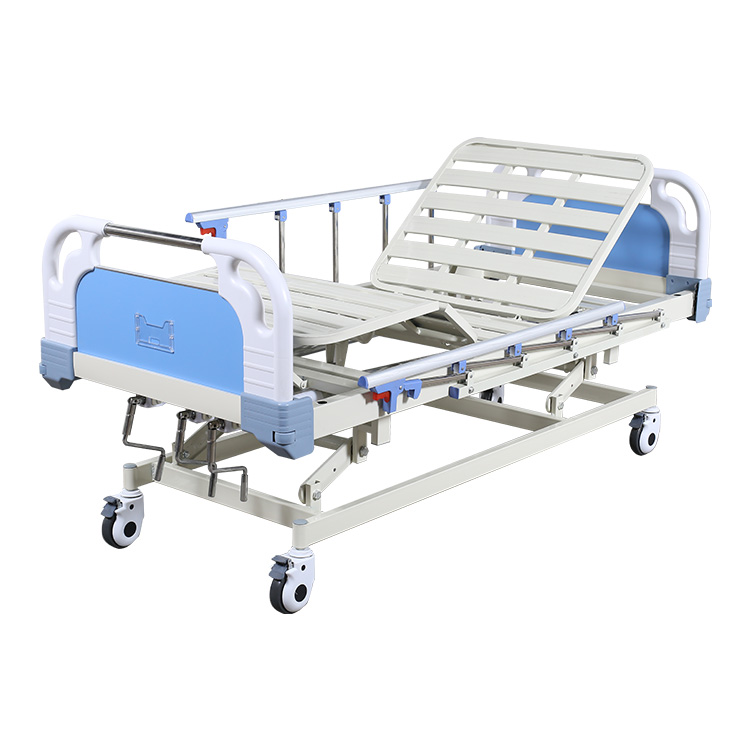

Hand Crank 3 Function Hospital Bed Single Board CZ3-B1

A reliable, manual 3-crank hospital bed for daily patient care. The CZ3-B1 lets staff quickly adjust backrest, leg section and overall height without power, lowering maintenance and downtime. Steel deck, ABS head/foot boards, optional side rails and 125 mm braked castors make it a durable, budget-right choice for wards and long-term care.

Functions: Manual 3-crank (back/leg/height)
Backrest angle: 0–70° (±5°)
Leg section angle: 0–35° (±5°)
Deck height travel: 200 mm; Working height: 420–620 mm
Size (L×W): 2170 × 960 mm
Safe load: 150 kg (within)

Optional: side rails (button-type or tube), stainless IV pole, mattresses, overbed table

Hand Crank 3-Function Hospital Bed CZ3-B1 | Manual 3-Crank Manufacturer

Built for heavy, everyday use, the CZ3-B1 offers smooth hand-crank control (back: 0–70° ±5°, leg: 0–35° ±5°, deck height travel: 200 mm) and a strong steel frame with easy-to-sanitize ABS ends. Standard size is 2170 × 960 mm with working height 420–620 mm and 150 kg load capacity. Add side rails, IV pole, mattress and overbed table to match your ward’s workflow.

Applications

General wards & community hospitals
Long-term care & nursing homes
Rehabilitation & step-down units
Emergency backup where power is unstable
Project tenders needing low upkeep & fast training

FAQ

Q1. What are the three functions?
Backrest lift, leg lift, and overall bed height adjustment via hand cranks.

Q2. What is the load capacity?
Within 150 kg for standard configuration.

Q3. Can I choose perforated or solid deck?
Yes. Cold-steel deck is available in perforated or solid versions; 1.0/1.2 mm thickness options.

Q4. What accessories are available?
Side rails, 125 mm braked castors, stainless IV pole, mattress (various thicknesses), and overbed table.
Yes. Deck travel is 200 mm; working height approx. 420–620 mm.

Q6. Lead time and OEM?
Standard models ship fast; OEM/ODM available for bulk orders. See our Hospital Beds category page for program details.

Product Specifications: CZ3-B1

For your detailed review and comparison, here are the technical specifications for the Hand Crank 3 Function Hospital Bed.

Specification	Details
Product Code	CZ3-B1
Functions	3 Cranks (Manual)
Back Rest Angle	0-70° ±5°
Leg Lifting Angle	0-35° ±5°
Height Adjustment	200mm (Total Range)
Dimensions	L2170 X W960 X H420-620mm
Load Capacity	Within 150 kgs
Bed Board	Cold steel board with punching hole (or solid). Thickness: 1.0/1.2mm.

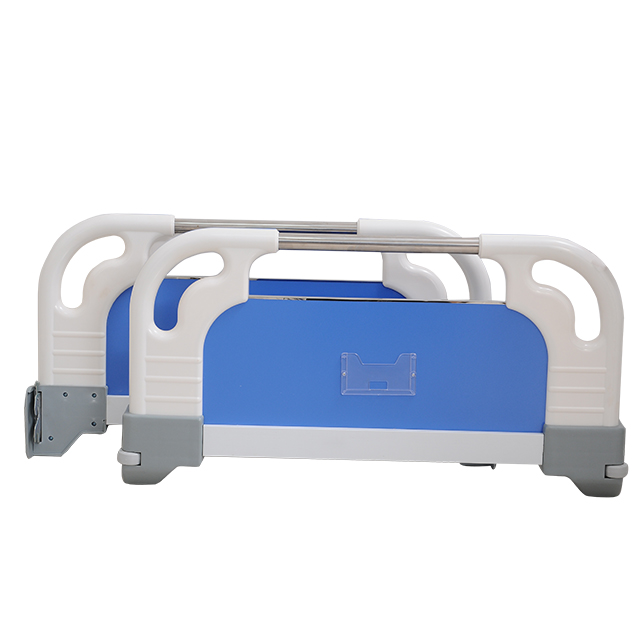

Head & Foot Board	ABS, blowing craftwork
Frame & Legs	Bed Frame: 40x80mm, Leg: 40x40mm. Thickness options: 1.0/1.2/1.5mm.

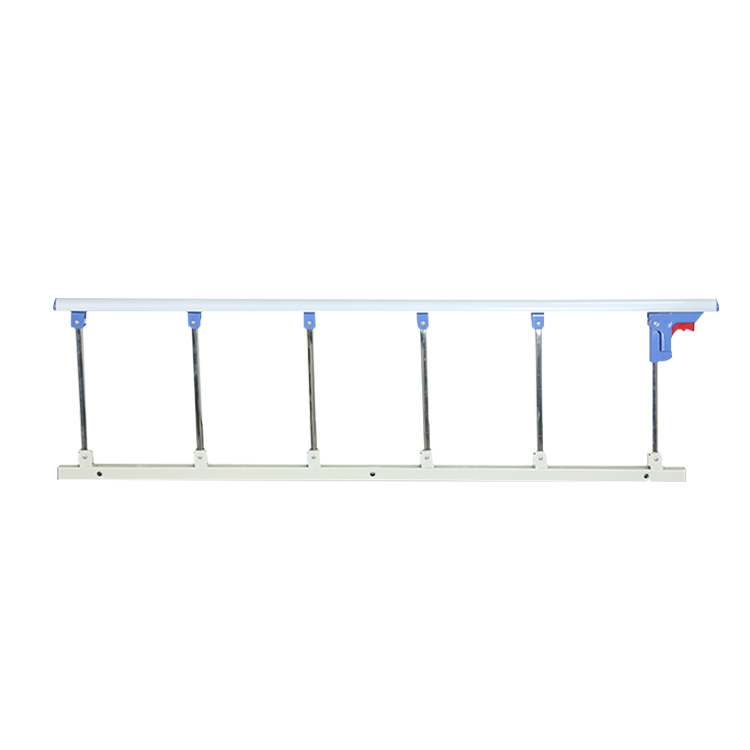

Optional Side Rails	Cold steel tube craftwork or button-operated; various material combinations available.

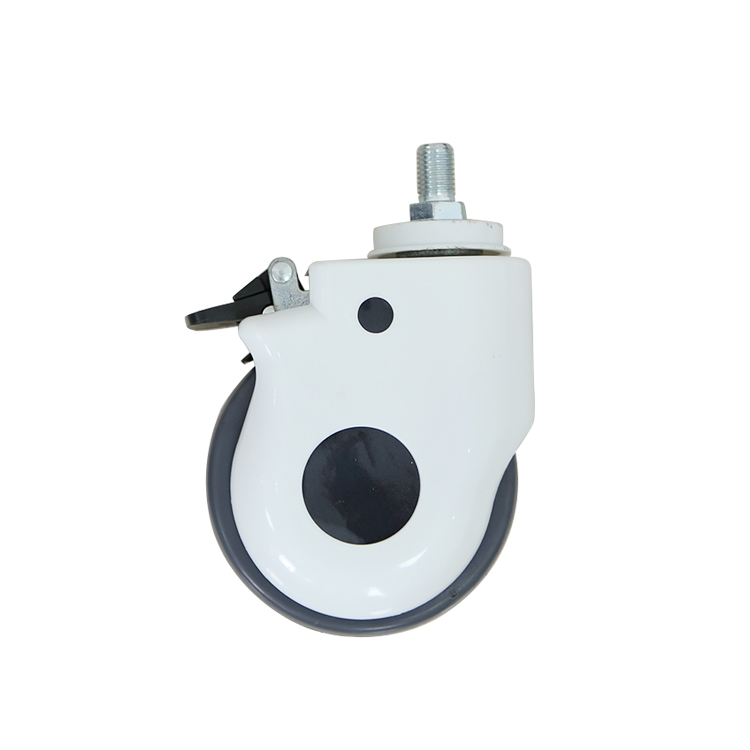

Optional Castors	5” (125mm) castors, each with an independent brake.

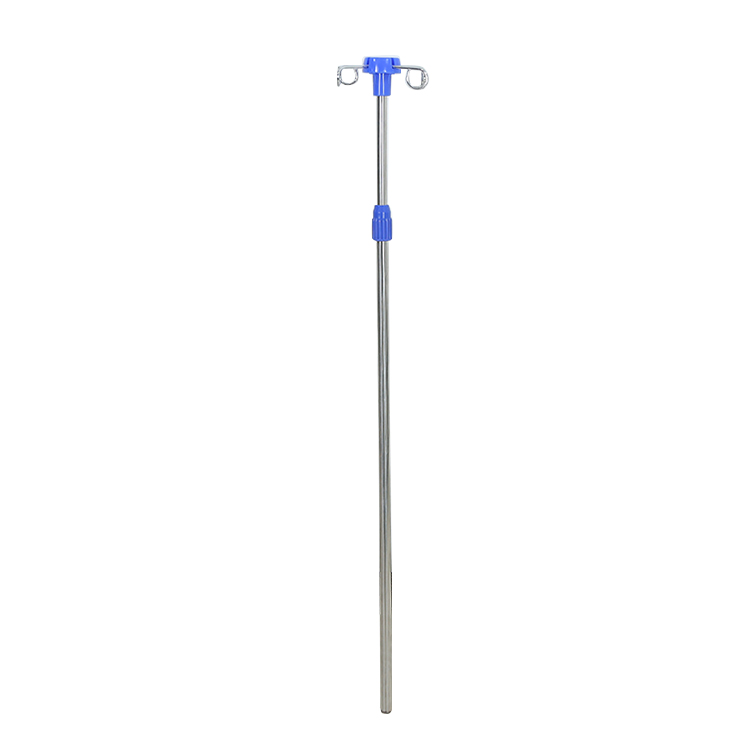

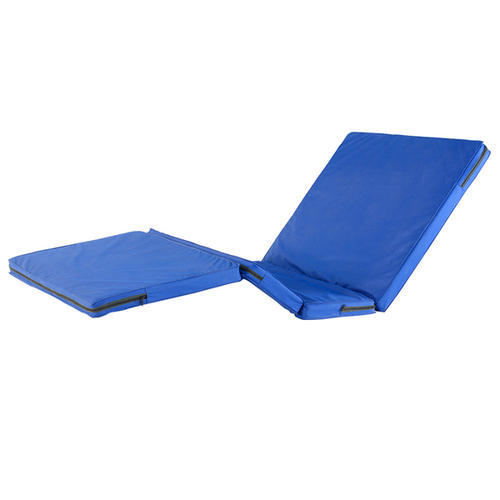

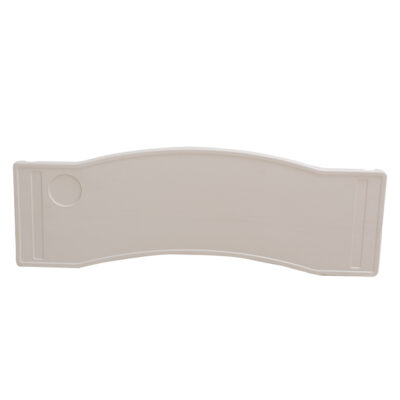

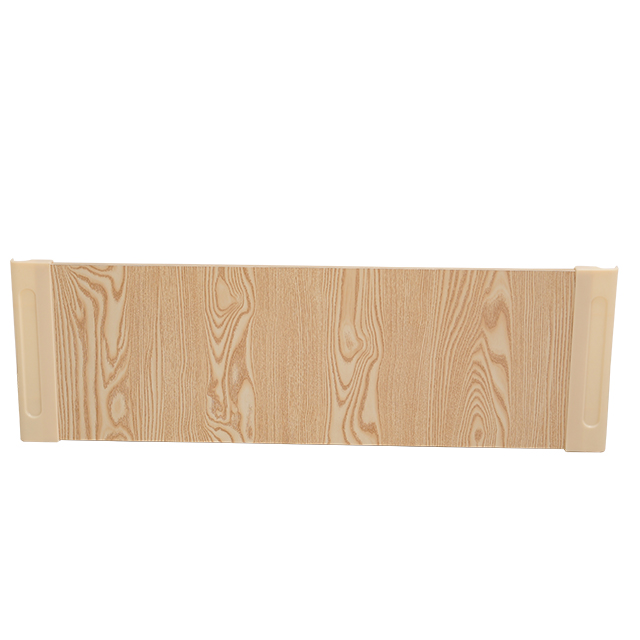

Other Accessories	Stainless steel IV rod, mattresses (various thicknesses), wooden or ABS overbed table.
