ABS Single Board Hand Crank 3 Function Hospital Bed CZ3-B

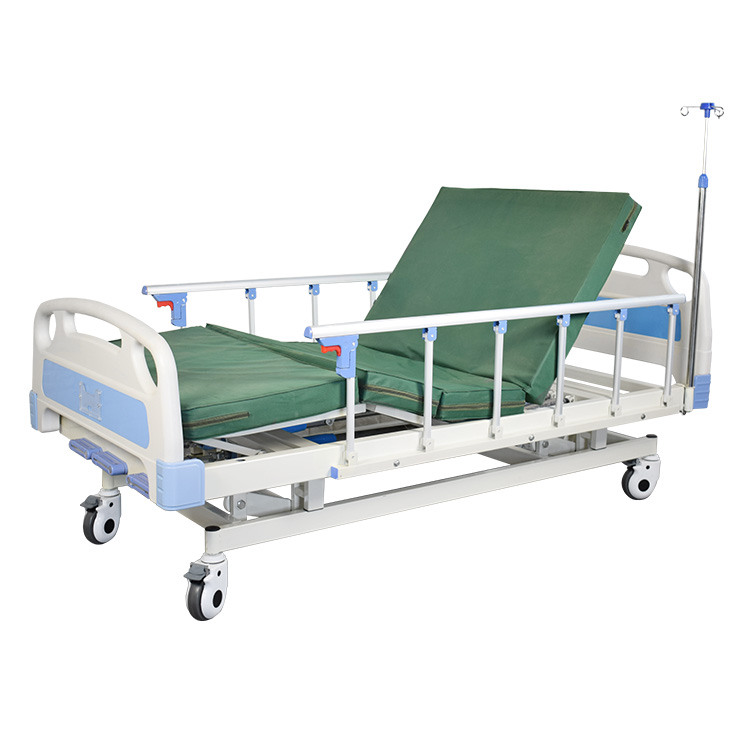

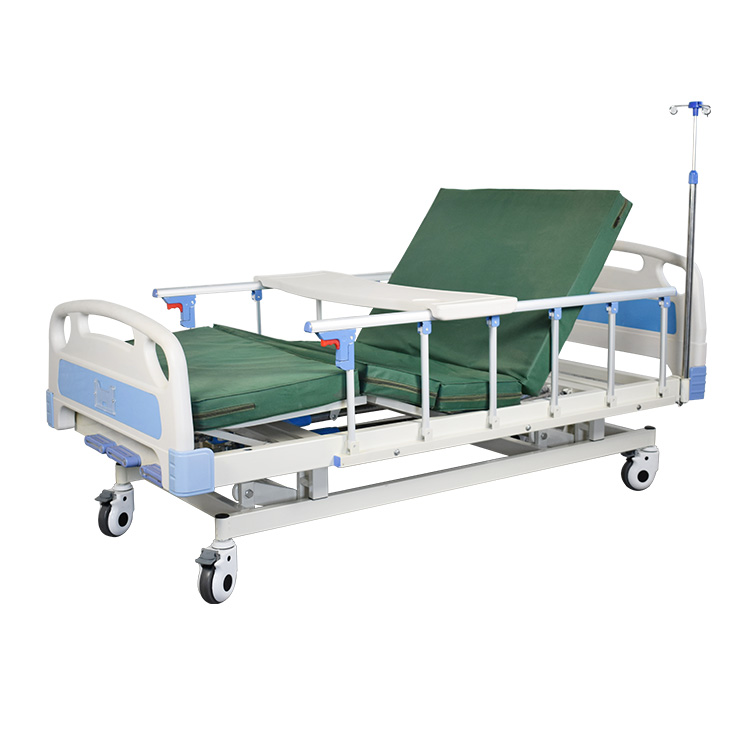

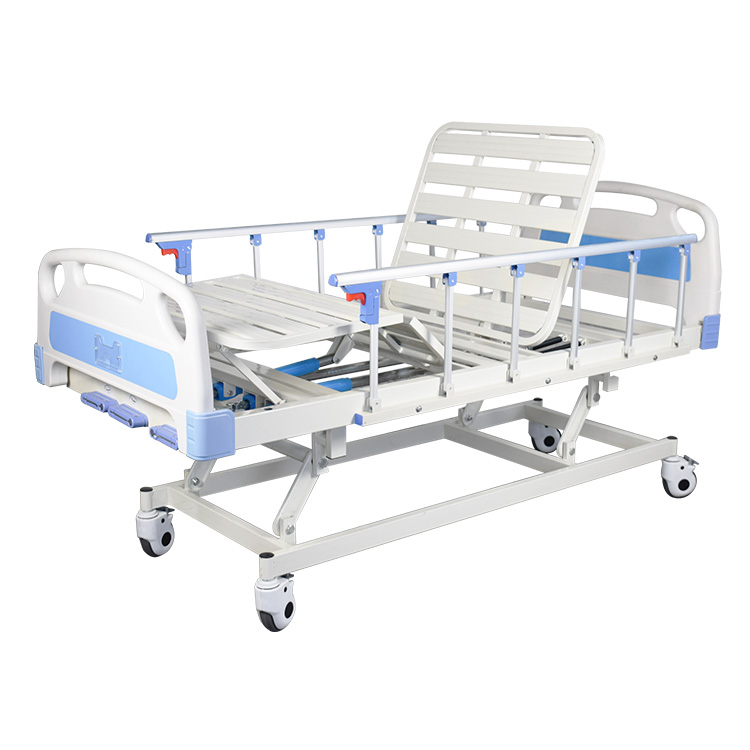

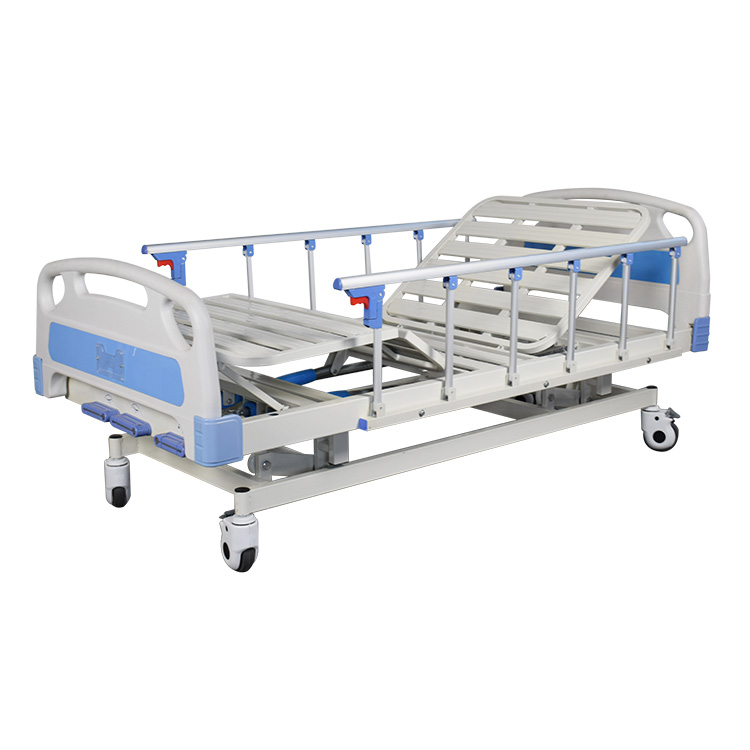

The CZ3-B Hand Crank 3-Function Hospital Bed offers manual adjustments for backrest, knee section, and bed height. Built with a durable steel frame and ABS headboard, it’s ideal for hospitals, clinics, and home care.

Overall Dimensions: L 2170 mm × W 960 mm × H 420–620 mm
Mattress Platform Size: L 1950 mm × W 840 mm
Material: Powder-coated mild steel frame, ABS plastic head and foot boards, aluminum alloy side rails.
Weight: Approximately 82 kg

Hand Crank 3-Function Hospital Bed ABS Single Board CZ3-B | Manual Adjustable Medical Bed

Adjustable Positions: Backrest adjusts from 0° to 70°, knee section from 0° to 35°, and bed height from 42 cm to 62 cm.

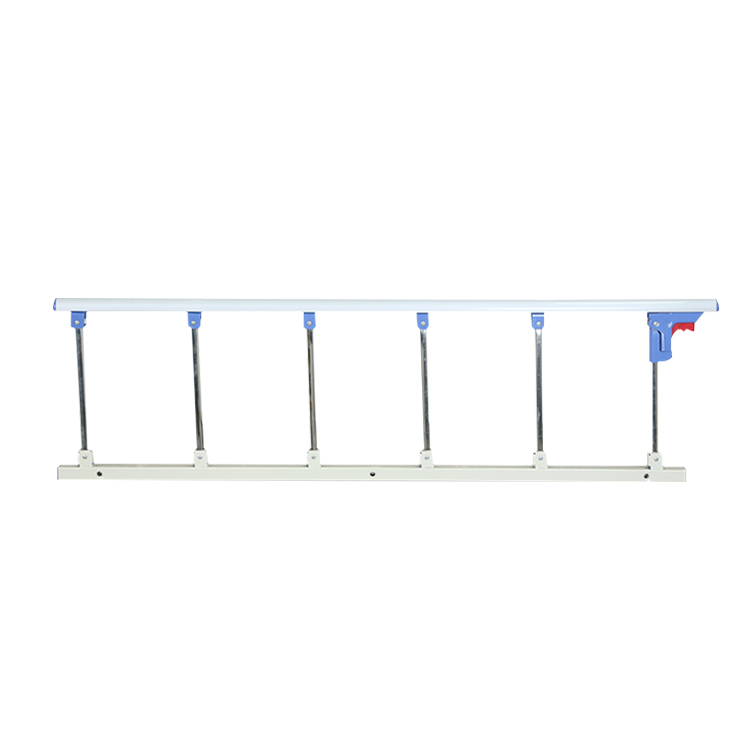

Side Rails: Folding aluminum side rails provide safety and can be easily lowered for patient access.
Castors: Equipped with 125mm lockable castors for easy mobility and stability.
Load Capacity: Supports up to 150 kg, accommodating a wide range of patients.
Accessories: Includes an IV pole holder and drainage bag hooks for added convenience.

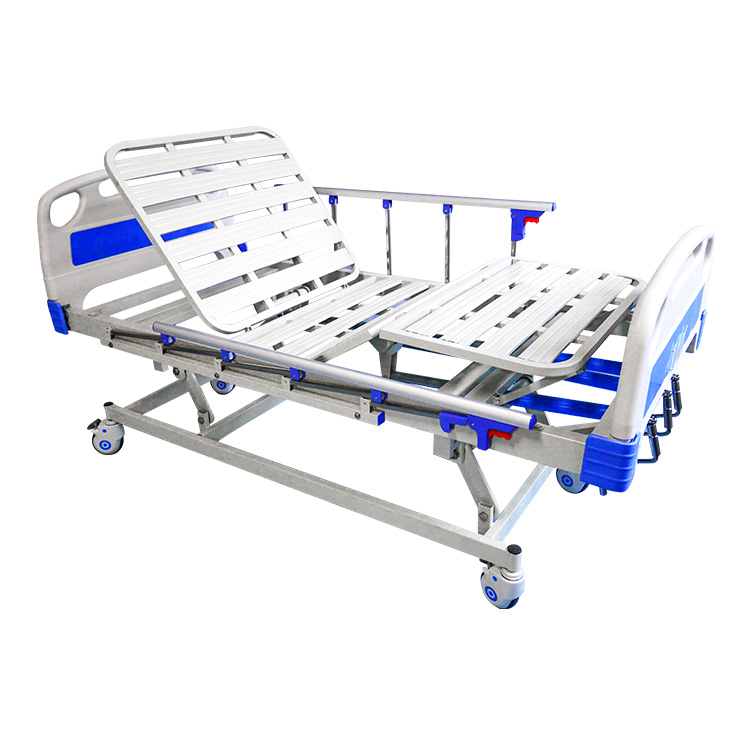

ABS Single Board Hand Crank 3 Function Hospital Bed CZ3-B (1 (8)

Applications

This bed is suitable for use in various healthcare settings, including:

Hospitals: Ideal for patient wards requiring adjustable beds.
Clinics: Provides comfort and support during patient examinations.
Home Care: Offers caregivers the necessary tools to assist patients effectively.

Product Specifications: Model CZ3-B

To provide a clear overview, here are the detailed specifications of the CZ3-B 3 Crank Hospital Bed. We offer serveral customization options to meet your specific needs for OEM/ODM projects.

Specification	Details
Product Code	CZ3-B
Functions	3 Functions via Hand Crank
Back Rest Adjustment	$0 - 70 \pm 5°$
Leg Lifting Adjustment	$0 - 35 \pm 5°$
Height Adjustment (Hi-Low)	200mm
Overall Dimension	L2170 x W960 x H420-620mm
Load Capacity	Within 150kgs
Materials	Metal, ABS

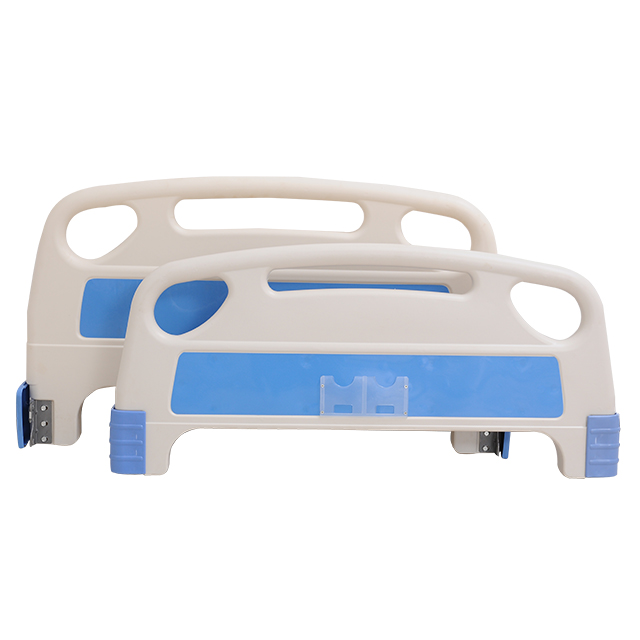

Head & Foot Board	Durable ABS, manufactured using blowing craftwork

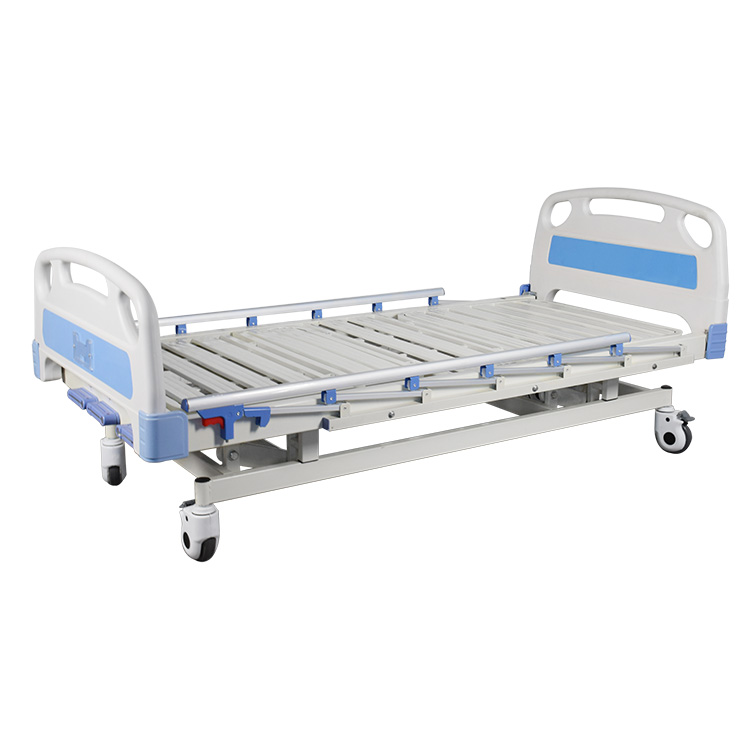

Bed Board	Cold steel board (with or without punching hole), thickness options: 1.0mm / 1.2mm
Bed Frame	40x80mm tube, thickness options: 1.0mm / 1.2mm / 1.5mm
Legs	40x40mm tube, thickness options: 1.0mm / 1.2mm / 1.5mm
Optional Accessories
Side Rails	Cold steel tube or various aluminum/stainless steel post combinations (4/5/6 posts). Learn more about our customization at Hospital Beds OEM.

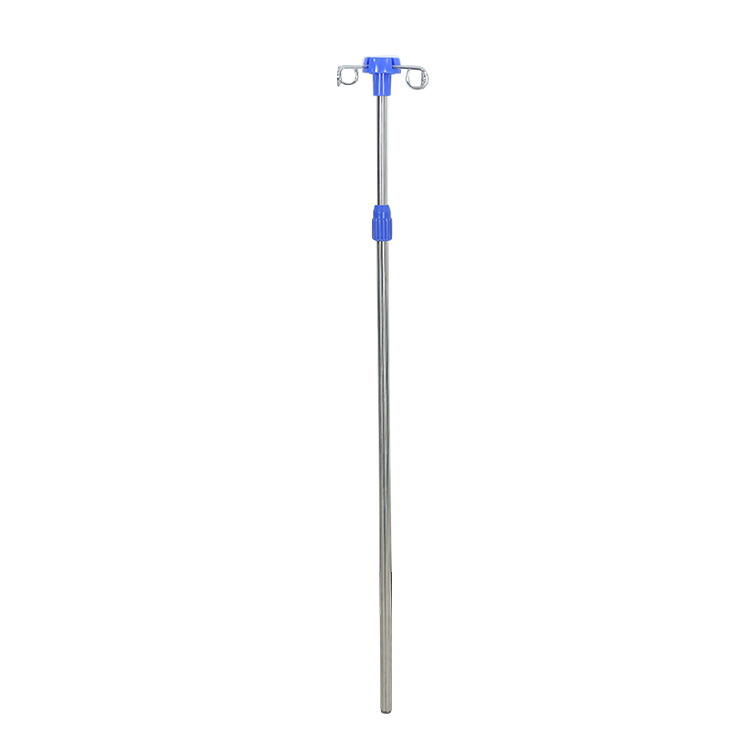

IV Rod	Stainless steel with 4 hooks

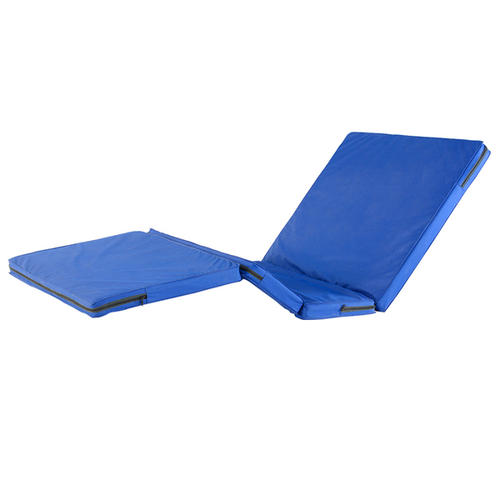

Mattress	6/8/10/15cm thickness, inner palm with sponge

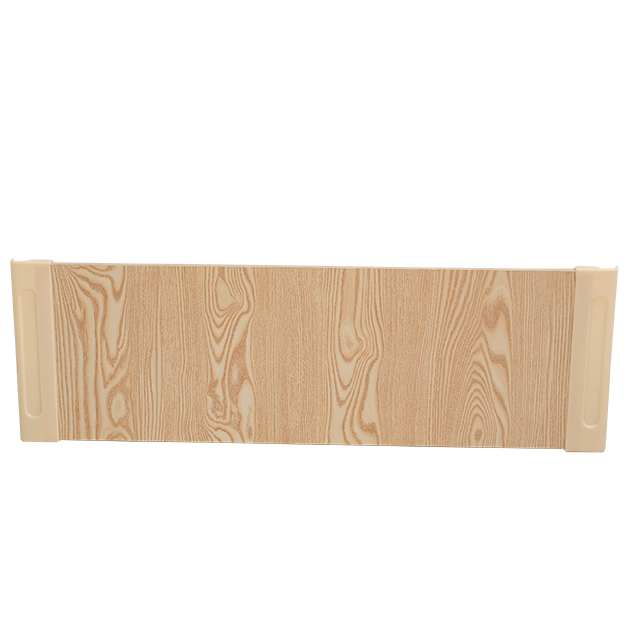

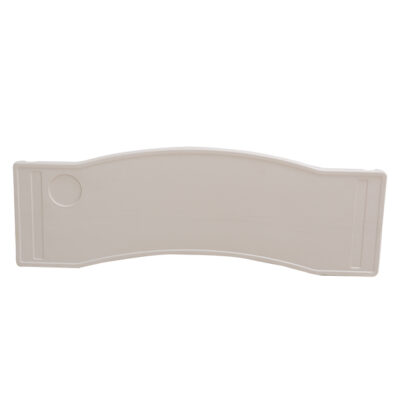

Overbed Table	Wooden or ABS material

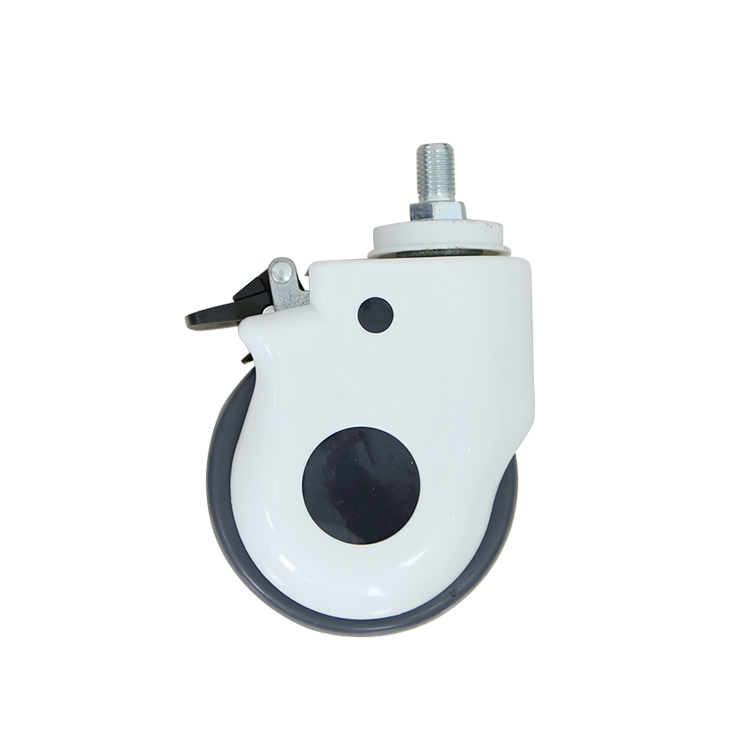

Castors	Optional 5” (125mm) castors, each with an individual brake
